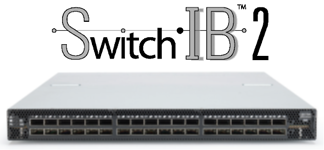

NVIDIA InfiniBand Switches
![]() |
![]() |
|||

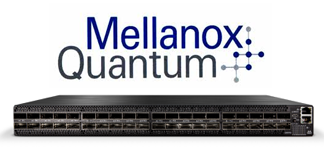

Model | SB7890 | SB7800 | QM8790 | QM8700 |
Ports | 36 | 36 | 40 | 40 |
Speed | 100 Gbps | 100 Gbps | 200 Gbps | 200 Gbps |
Fom Facotr | 1U | 1U | 1U | 1U |
Total System Bandwidth | 7.1 Tb/s | 7.1 Tb/s | 16 Tb/s | 16 Tb/s |
Mgmt. Modules | x | o | x | o |
Switch latency | 90ns | 90ns | 130ns | 130ns |
Media | QSFP28 | QSFP28 | QSFP56 | QSFP56 |
![]() |
![]() |
![]() |
![]() |
|

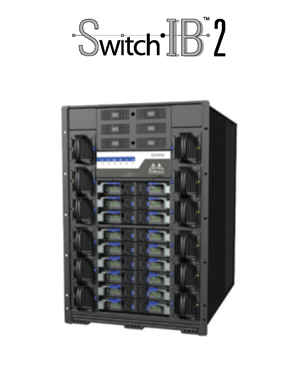

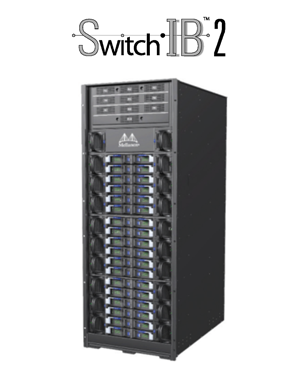

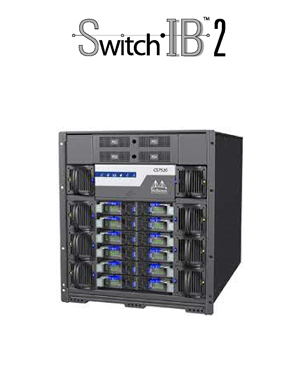

Model | CS7510 | CS7520 | CS7500 | CS8500 |
Ports | 324 | 216 | 40 | 40 |
Speed | 100 Gbps | 100 Gbps | 100 Gbps | 200 Gbps |
Fom Facotr | 16U | 12U | 28U | 29U |
Total System Bandwidth | 64 Tb/s | 43 Tb/s | 130 Tb/s | 320 Tb/s |
Switch latency | Ultra low | Ultra low | 400ns | Ultra low |
Media | QSFP28 | QSFP28 | QSFP28 | QSFP56 |

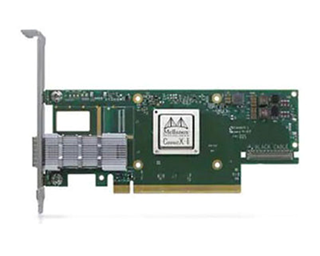

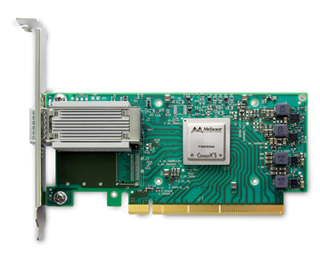

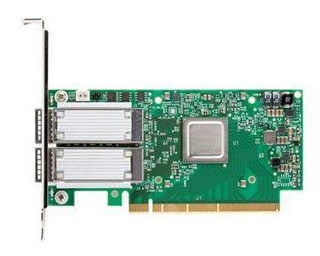

NVIDIA ConnectX InfiniBand Adapters & Cables
![]() |
![]() |
![]() |
![]() |
|
Model | MCX555A-ECAT | MCX556A-ECAT | MCX653105A-HDAT | MCX653106A-HDAT |
Ports | 1 | 2 | 1 | 2 |
Speed | 100 Gbps | 100 Gbps | 200 Gbps | 200 Gbps |
Host Interface[PCIe] | Gen3 x16 | Gen3 x16 | Gen3.0/4.0 x16 | Gen3.0/4.0 x16 |
Media | QSFP28 | QSFP28 | QSFP56 | QSFP56 |
NVIDIA ETHERNET SWITCHES
SN2000 Series | ![]() |
![]() |
![]() |
![]() |
---|---|---|---|---|
Model | SN2010 | SN2010 | SN2410 | SN2700 |
25G Ports | 18 | 48 | ||
100G Ports | 4 | 16 | 8 | 32 |
Max Throughput | 850Gb/s | 1.6Tb/s | 2.0Tb/s | 3.2Tb/s |
Form Factor | 1U | 1U | 1U | 1U |
Connector | QSFP28 | QSFP28 | QSFP28 | QSFP28 |
Total Packets per Second | 1.26Bbps | 2.38Bpps | 2.97Bpps | 4.76Bpps |
SN3000 Series | ![]() |
![]() |
![]() |
---|---|---|---|
Model | SN3410 | SN3700 | SN3700C |
25G Ports | 48 | ||
100G Ports | 12 | 32 | |
200G Ports | 32 | ||
Max Throughput | 2.4Tb/s | 64Tb/s | 32Tb/s |
Form Factor | 1U | 1U | 1U |
Connector | QSFP28 | QSFP56 | QSFP28 |
Total Packets per Second | 3.57Bbps | 8.33Bpps | 4.76Bpps |
SN4000 Series | ![]() |
![]() |
![]() |
![]() |
---|---|---|---|---|
Model | SN4600 | SN4600C | SN4700 | SN4800 |
100G Ports | 64 | 128 | ||
200G Ports | 64 | |||
400G Ports | 32 | |||
Max Throughput | 12.8Tb/s | 6.4Tb/s | 12.8Tb/s | 12.8Tb/s |
Form Factor | 2U | 2U | 1U | 4U |
Connector | QSFP56 | QSFP28 | QSFPDD | QSFP28 |
Total Packets per Second | 8.4Bbps | 8.4Bbps | 8.4Bbps | 8.4Bbps |
NVIDIA ETHERNET Adapter & Cables

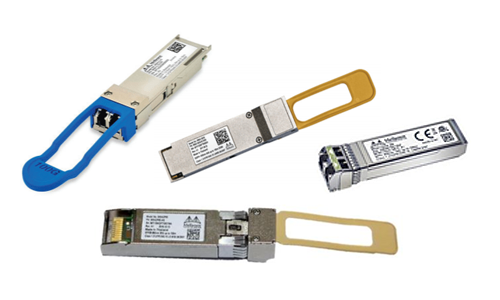

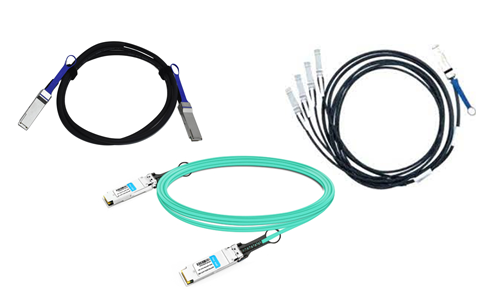

Transceiver & Cables
트랜시버 | 케이블 |
---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Model | MCX515A-CCAT | MCX516A-CCAT | MCX613105A-VDAT | MCX613106A-VDAT |
Ports | 1 | 2 | 1 | 2 |
Speed | 100GbE | 100GbE | 200GbE | 200GbE |
Host Interface[PCIe] | PCI3.0 x16 | PCI3.0 x16 | PCI4.0 x16 | PCI4.0 x16 |
Connector | QSFP28 | QSFP28 | QSFP56 | QSFP56 |
